Custom Reports

Under Custom Reports, the Custom Export screen is where you can create a report customized to your preferred format, optionally filter questions, and export the report.

You can have as many custom Export Formats as necessary. Export Formats are not study specific and are available to the entire organization once created.

Select Type, Format, Filter Questions, and Export

The process to generate a Custom Report consists of these steps:

1. Select the Format Type

   Select from the Codeframe or Results format types. Export Formats are specific to a Format Type.

2. Select the Export Format

   Select an existing Export Format or Add a new format to your specifications. See Select Export Format and Edit Custom Export Format for more information.

3. Select Question Filter Option

   If you want to filter the questions exported, click the Question Filter button to select the questions to include.

4. Export the Selected Export Type and Format

   Once the export format and question filters are set, click the Export Codeframe/Results button to export the codeframes/results.

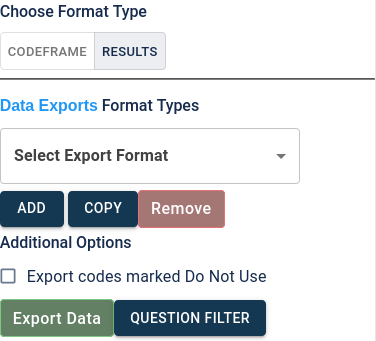

Select Export Format

This section allows you to add/remove/copy new custom export formats and select the format to use.

Choose Format Type (Codeframe or Results)

Toggles which set of custom export formats are visible. Codeframe and Results format types are specific to codeframes or specific to results data.

Add

Add a new custom format for the organization

Copy

Copy the currently chosen export format

Remove

Delete the custom export format for the organization (not just this study).

Addtional Options

Export Do Not Use Codes

Controls the export of codes marked as "do no use". By default these codes are not exported.

Question Filter

Click Question Filter to restricts the codeframes/results export to only specific questions.

Export Codeframe or Export Data

Click the Export Codeframe or Export Data button to export the custom codeframes/results report.

or

---

Edit Custom Export Format

Edit details of the selected custom format at each export level.

Fields

Format Name

Name of this specific format

Project Start

Custom format to apply at the start of a custom export

Question Start

Custom format to apply at the start of a Question during a custom export

Net Start

Custom format to apply at the start of a Net during a custom export

Code Start

Custom format to apply at the start of a Code during a custom export

Code End

Custom format to apply at the end of a Code during a custom export

Net End

Custom format to apply at the end of a Net during a custom export

Question End

Custom format to apply at the end of a Question during a custom export

Project End

Custom format to apply at the end of a custom export

Export Format Variables

Below is a reference of the available variables that can be used in the custom export formats.

General Export Options

name	description	type
[Date]	Current date	text
[NL]	Insert line break	text
[Tab]	Insert a tab character	text
[Time]	Current time	text

Code/CodeNet Export Options

name	description	type
[CChildren]	Count of children (sub-codes) of this code (integer)	integer
[CColumn]	Code column (starting location of code on card) (integer) if output value is 456B then the code column in 456 and punch value is B. If column to left of punch value is non numeric then 00 is used instead.	text
[CDescendants]	Count of descendants (subcodes and their subcodes) of this code (integer 0 for Codes)	integer
[CParentNetID]	DAI Field. Id of the direct parent for this code or net	integer
[CEndColumn]	[CColumn] + [QColumns] - 1	integer
[CGroup]	Code group number (e.g. 1.3.2) (This field is ordered from 1 to n based on position in the codebook. The first net gets a netgroup of 1 and and sub codes get a value of 1. Subnets start the process over. Codes under any subnet pickup the CGroup of the net above it.)	text
[CHelp]	Code help - text	text
[CHover]	Code hover help - text	text
[CID]	Output code value zero padded for column width (eg. 00005) - text	text
[CIndent]	Insert [CLevel] tab characters	text
[CInputID]	Input code value zero padded for column width (eg. 00005) - text	text
[CKey]	Key number for code (guaranteed unique) - text output cd_	text
[CLevel]	Level of code in codebook (1 = top level) - integer	integer
[CList]	List of all descendant code values (but no nets), separated by commas and zero padded for column width based on input ids	text
[CNumber]	Code row number - integer	integer
[ColPunch]	Same as [CColumn]'[CPunch]' – text	text
[COutputID]	Output code value zero padded for column width (eg. 00005)	text
[COutputIDRaw]	Output code minus the padding	text
[CPunch]	Code punch (rightmost character of code value)	text
[CPunchList]	List of all descendant code [ColPunch] values (but no nets), separated by commas based on output value	text
[CPunchListOr]	c23'534'.or.c26'18x'.or.c34'2579'... card number and punch code formatted based on card width and question width	text
[CRegExp]	Regular expression	text
[CRelCol]	[CColumn] - [QColumn]	integer
[CText]	Code description	text
[CCodesApplied]	Codes applied	text

Respondent Export Options

name	description	type
[RID]	Respondent ID	text
[ARID]	Alternate Respondent ID	text
[RNote]	Notes	text
[RNoteReview]	1 if Note is reviewed, 0 if not	integer
[RTrans]	Transcription	text
[RTransReview]	1 if Transcription is reviewed, 0 if not	integer
[RTranslation]	Translation	text
[RTranslationReview]	1 if Translation is reviewed, 0 if not	integer
[RVerbatim]	Verbatim response	text
[RVerbatim:QID]	Verbatim response for this respondent in question QID	text
[RVerbatimReview]	1 if Verbatim is reviewed, 0 if not	integer

Question Export Options

name	description	type
[QCard]	Question card zero padded to card width. Default to 00 with max up to 99999	text
[QCBKey]	Key number of codebook (guaranteed unique) cb_q	text
[QCodesApplied]	Codes applied	integer
[QColumn]	Question column start position of question in layout	integer
[QColumns]	Question columns width of code in question layout	integer
[QEndColumn]	[QColumn] + [QColumns]*([QMaxCodes] - 1) + [Qcolumns]	integer
[QHelp]	Question help	text
[QID]	Question ID	integer
[QKey]	Key number for question (guaranteed unique) c_	text
[QLabel]	Question Label	text
[QMaxCodes]	Maximum number of codes to output	integer
[QMaxOutputID]	Maximum numeric value of OutputID of non-net codes	integer
[QResponsesCoded]	Responses coded	integer
[QResponsesCurrent]	Responses current	integer
[QResponsesLoaded]	Responses loaded	integer
[QResponsesRef]	Responses referred	integer
[QResponsesTranscribed]	Responses transcribed	integer
[QResponsesTranslated]	Responses translated	integer
[QText]	Question text	text
[QType]	Question type (0: Open, 1: Closed, 2: Other specify, 3: Value)	integer
[QTypeName]	Question Type	text

Study Export Options

name	description	type
[SCardCols]	Columns per card / respondent	integer
[SCardNumCol]	Card number column start	integer
[SCardNumCols]	Card number columns width	integer
[SClosedQuestions]	Closed questions	integer
[SResponsesCoded]	Responses coded	integer
[SDesc]	Study description	text
[SID]	Study ID	text
[SLABEL]	Friendly Study Label	text
[SHelp]	Help on this study	text
[SName]	Study name	text
[SOpenQuestions]	Open questions	integer
[SOSQuestions]	Other specify questions	integer
[SResponses]	Responses	integer
[SRespondents]	Respondents	integer
[SRIDCol]	Respondent ID column	integer
[SRIDCols]	Respondent ID columns	integer
[SValueQuestions]	Value questions	integer
